Hospital Supply Room Pure Water System

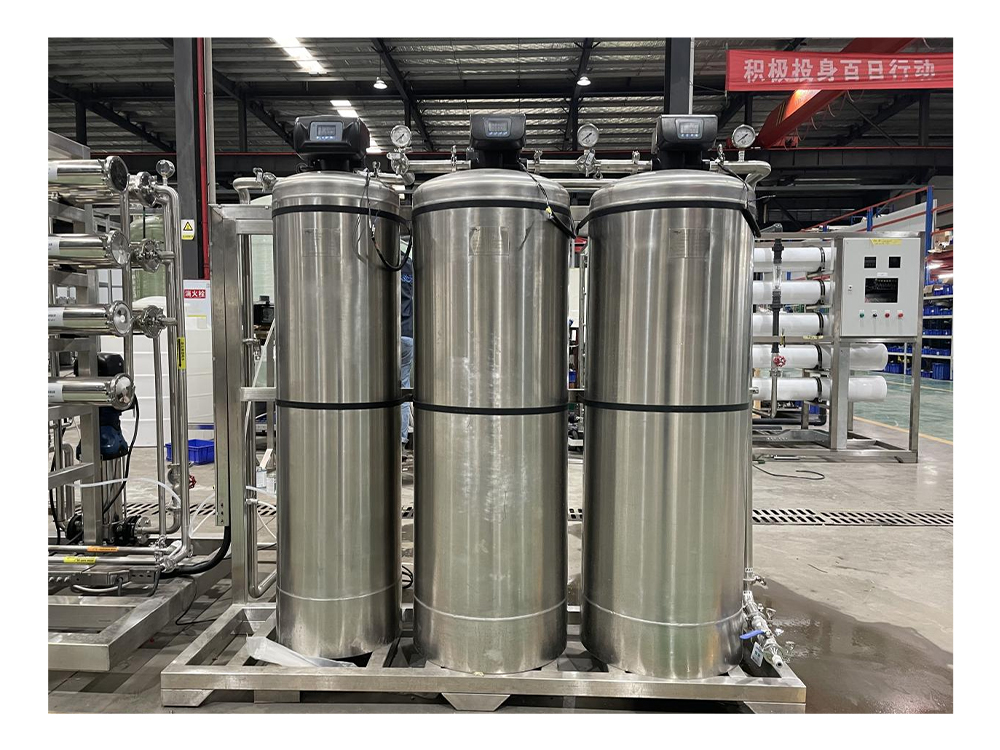

Pretreatment filters: It adopts multimedia filter, activated carbon filter and water softener to filter out the large particles, residual chlorine, organic matters and inlet water hardness to ensure the stable operation of subsequent processing.

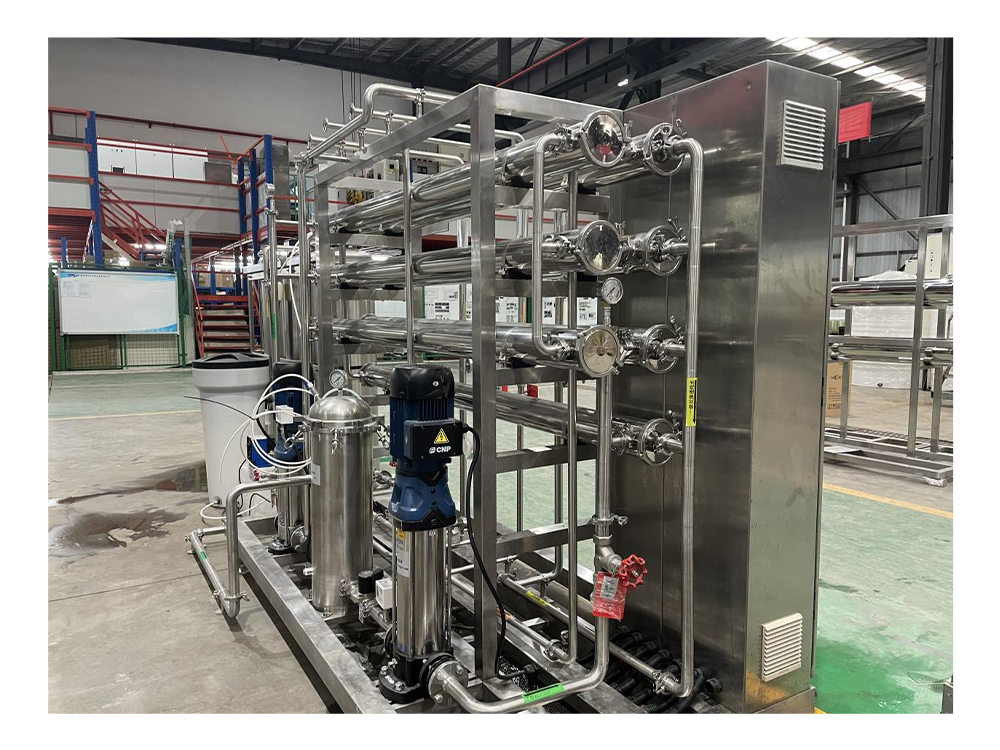

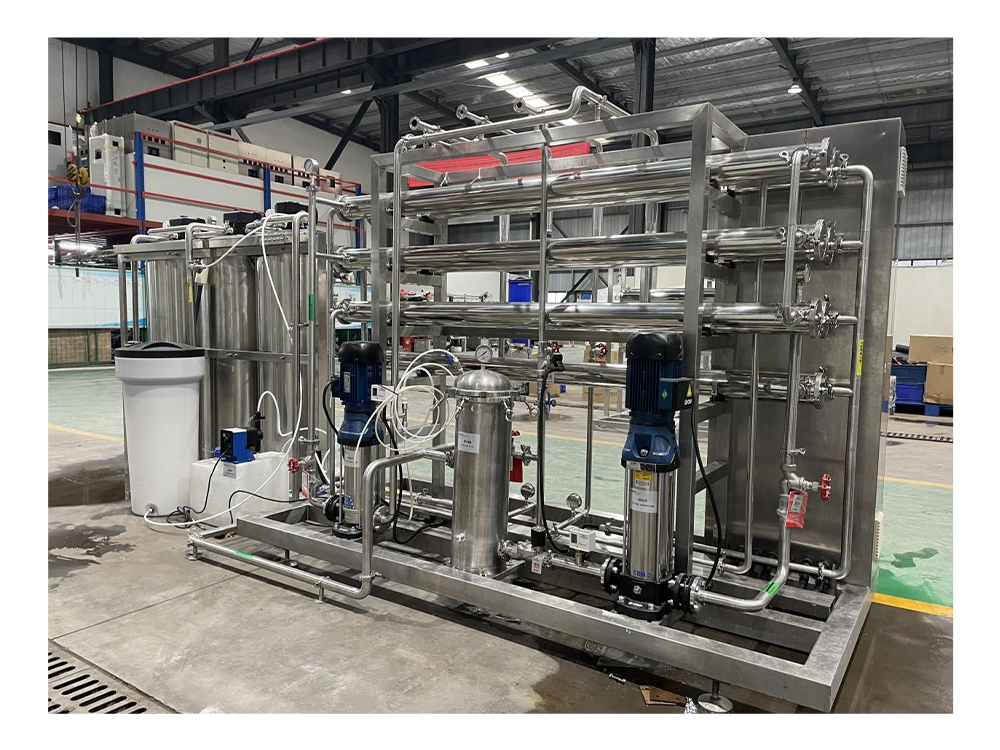

‌RO system: Using a high-pressure pump to drive water molecules to penetrate the reverse osmosis membrane, intercepting inorganic salts, heavy metals, and microorganisms, and producing water with a purity of conductivity<2.0 μ S/cm‌

EDI desalination( optional): Further removal of residual ions through electrodeionization technology to achieve ultrapure water (resistivity ≥ 15M Ω· cm)

Storage, delivery and disinfection device: equipped with ultraviolet (UV) sterilizer and ozone disinfection, paired with micro filter to eliminate the risk of microbial contamination

Share to

Typical working flow

Raw water → booster pump → multi-media filter → activated carbon filter → softener filter → precision filtration → 1st RO system → 2^nd RO system /EDI → pure water tank → UV sterilization → micro filtration → water point

Technical Specification

Product	Hospital supply room pure water system
Capacity	250L/H-10000L/H
Source water	Ta p water
Produce water quality	Complies with the “Acceptance Standards for Hospital Disinfection Supply Room” and the “Management Guidelines for Disinfection Supply Center”, with a total bacterial count of ≤ 10CFU/100mL and endotoxins of ≤ 0.25EU/mL‌
Desalination rate	99%
Power supply	Customized

Model

Model	Capacity
MOLDSC-50S	50L/H
MOLDSC-100S	100L/H
MOLDSC-150S	150L/H
MOLDSC-200S	200L/H
MOLDSC-250S	250L/H
MOLDSC-500S	500L/H
MOLDSC-750S	750L/H
MOLDSC-1000S	1000L/H
MOLDSC-1500S	1500L/H
MOLDSC-2000S	2000L/H

Application

Provide sterile pure water for cleaning machines, steam sterilizers, and ultrasonic cleaning machines to avoid residual scale or microorganisms during instrument cleaning
End rinse surgical instruments, endoscopes, and other highly dangerous items to ensure sterilization effectiveness

Machine Advantages

Fully automatic microcomputer operation, real-time online monitoring of conductivity, pressure, and flow rate, automatic alarm and shutdown for exceeding standards
Equipped with remote monitoring module to achieve unmanned operation of equipment
Made of stainless steel 304 material, with integrated or split design, the equipment is beautiful and durable
Equipped with multiple safety mechanisms such as automatic protection and alarm functions, power on self-test, water shortage protection alarm, high and low voltage automatic shutdown protection, etc., to extend the service life of the equipment
Adopting imported reverse osmosis membranes with high desalination rate, low energy consumption, and anti pollution, the water quality of the produced water is stable
Automatic flushing of reverse osmosis membrane upon startup, extending the service life of reverse osmosis membrane
