Molgene Ultrapure Water Machine
Molecular provides 10l/hr to 150l/hr type I ultrapure water machine for laboratory applications.
The produced water quality meet the ASTM, CAP, NCCLS and China GB6682-2008 Standard.

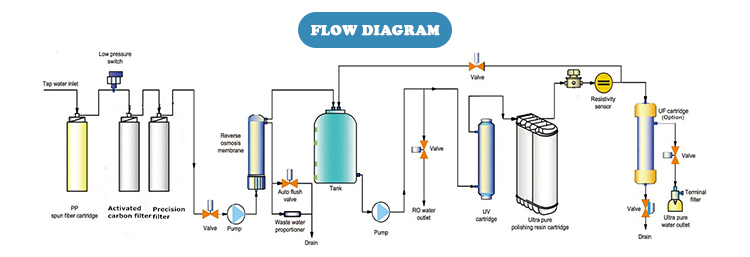

Typically, an ultrapure water or high purity laboratory water system mainly consist of four parts: pretreatment stage, reverse osmosis stage, polishing stage and delivery parts.
Share to
Product Description
Type I laboratory water is used for critical laboratory applications including:
- HPLC / IC / ICP / ICP-MS / LC-MS organic analysis
- TOC analysis, trance analysis, environmental analytical test
- Molecular biology related experiment, include PCR, DNA, RNA preparation. Protein analysis.
Technical Specification
| Model | Molgene 610s | Molgene 610d |
| Process | Single stage RO | Double stage RO |
| Output of pure water | ≥10L/H | ≥10L/H |
| Output of ultrapure water | ≥1-1.5L/min | ≥1-1.5L/min |
| Resistivity @25℃ (type 1 water) | 18.25MΩ.cm | 18.25MΩ.cm |
| Conductivity @25℃(type 3 water) | ≤10μs/cm | ≤5μs/cm |
| TOC | 3ppb | 3ppb |
| Pyrogens | <0.025EU/ml | <0.025EU/ml |
| Bacteria | <1cfu/ml | <1cfu/ml |
| Particles | <1/ml | <1/ml |
| Absorbance | ≤0.001 | ≤0.001 |
| Reactive silica | <0.01ppm | <0.01ppm |
| Heavy metal | <0.01ppm | <0.01ppm |
Features
01
Brand new ABS engineering plastic shell, not easy to age, anti-corrosion and anti-rust;
02
Customizable standby picture The customer unit name and LOGO are displayed on the screen;
03
Factory function settings are protected by an independent password to prevent unauthorized changes;
04
Pure water conductivity and ultrapure water resistivity can be monitored online, and can be displayed simultaneously on the host display and the water intake arm display, which is convenient for observing water quality;
05
Matching water intake dispenser : The water intake dispenser has a brand new 5.0-inch color touch screen with a resolution of 800×480, which can realize fingertip touch operation; and one set of water intake arms has both Class III pure water and Class I ultrapure water intake ports, and water can be taken by pressing the corresponding buttons on the touch screen;
06
The system adopts IC microcomputer intelligent full-automatic control, and has the “Ultrapure Water Production Control System Patent Certificate” and “Water Purifier Control System Software Copyright Registration Certificate”;
07
Complete fault alarm prompts: liquid level switch failure, low water level alarm, low water inlet pressure alarm, consumables expiration reminder, etc.;
08
There are three modes for water extraction of Class III pure water and Class I ultrapure water: random water extraction, quantitative water extraction, and timed water extraction to meet different water extraction needs;
09
Date and time are displayed online, and can be set by adjusting the time button;
10
Information record query: current filter element usage time, RO membrane usage time, purification package water output, etc.; and it has the functions of clearing the filter element usage time, clearing the RO membrane usage time, and clearing the purification package water output.
