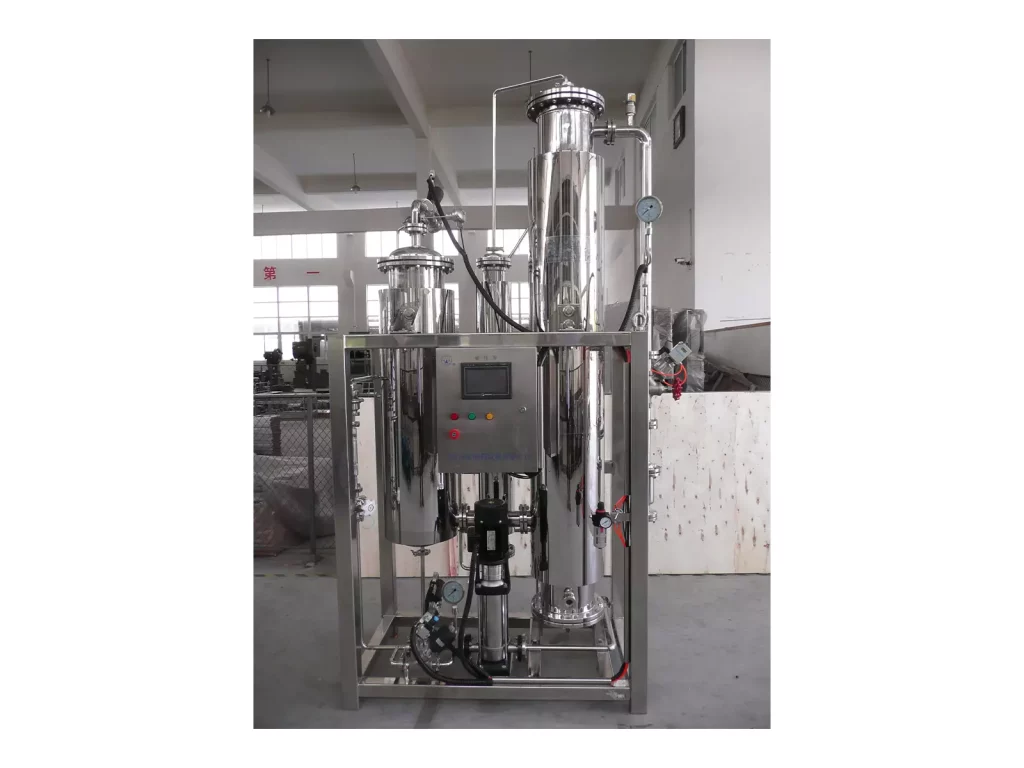

Pure Steam Generation System (PSG)
Molecular pure steam generator uses industrial steam to heat pure water to produce pure steam. It is widely used in medical, pharmaceutical and food industries to provide high quality steam for high quality sterilization. The machine adopts stable shell and tube heat exchanger structure. It is widely used in sterilization and disinfection of medical and health care, biopharmaceutical industry, food industry and related instruments.
Share to

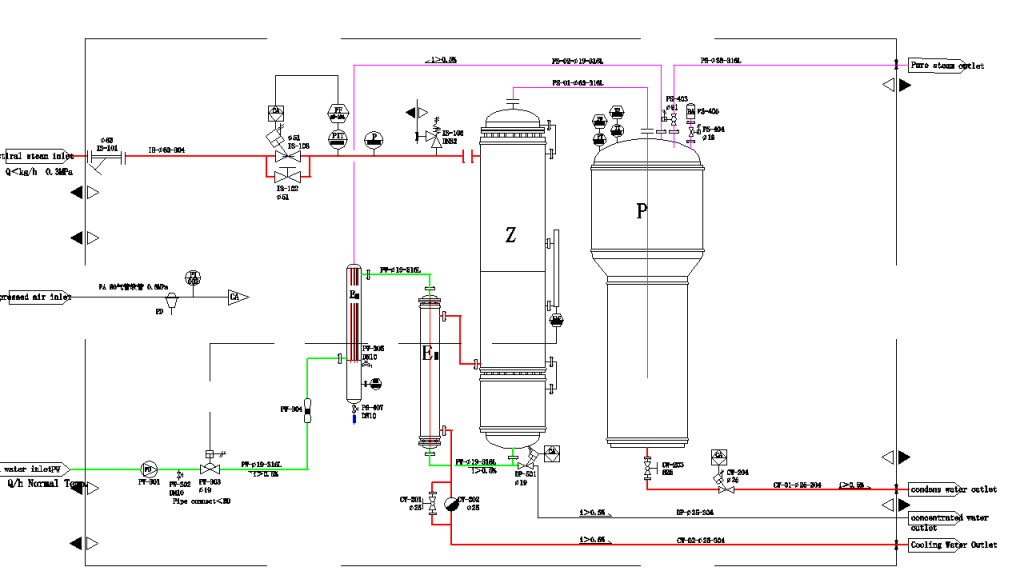

Working principle
The purified water enters the evaporator through the pump and exchange heat with the industrial steam. The produce water steam is separated into pure steam through the separator and then transfer to the point of use. Pure steam shall be sampled and tested online before use, and transported to the user points with the required pressure range.
Models of Pure Steam Generator
| Model | Steam pressure(Mpa) | Pure steam pressure(Mpa) | Steam consumption(L/H) | Pure steam output(L/H) | Purified water consumption(L/H) |
| MOLPSG-100 | 0.16-0.25 | 0.3 | 130 | >100 | 125 |
| MOLPSG-200 | 0.16-0.25 | 0.3 | 260 | >200 | 250 |
| MOLPSG-300 | 0.16-0.25 | 0.3 | 390 | >300 | 375 |
| MOLPSG-400 | 0.16-0.25 | 0.3 | 520 | >400 | 500 |
| MOLPSG-500 | 0.16-0.25 | 0.3 | 650 | >500 | 625 |
| MOLPSG-600 | 0.16-0.25 | 0.3 | 780 | >600 | 750 |
Pure Steam Main Detection Indicators
01
Microbial limit: the same as water for injection
02
Conductivity: the same as water for injection
04
TOC: the same as water for injection
05
Bacterial endotoxin: 0.25EU/ml (if used for injection preparation)
