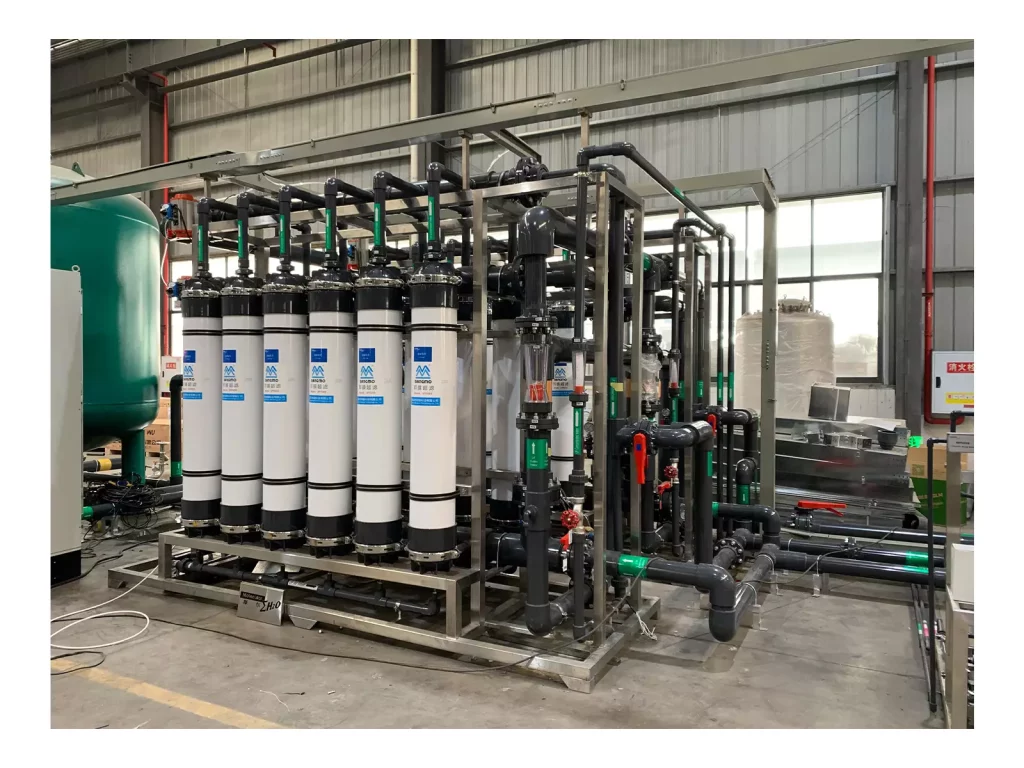

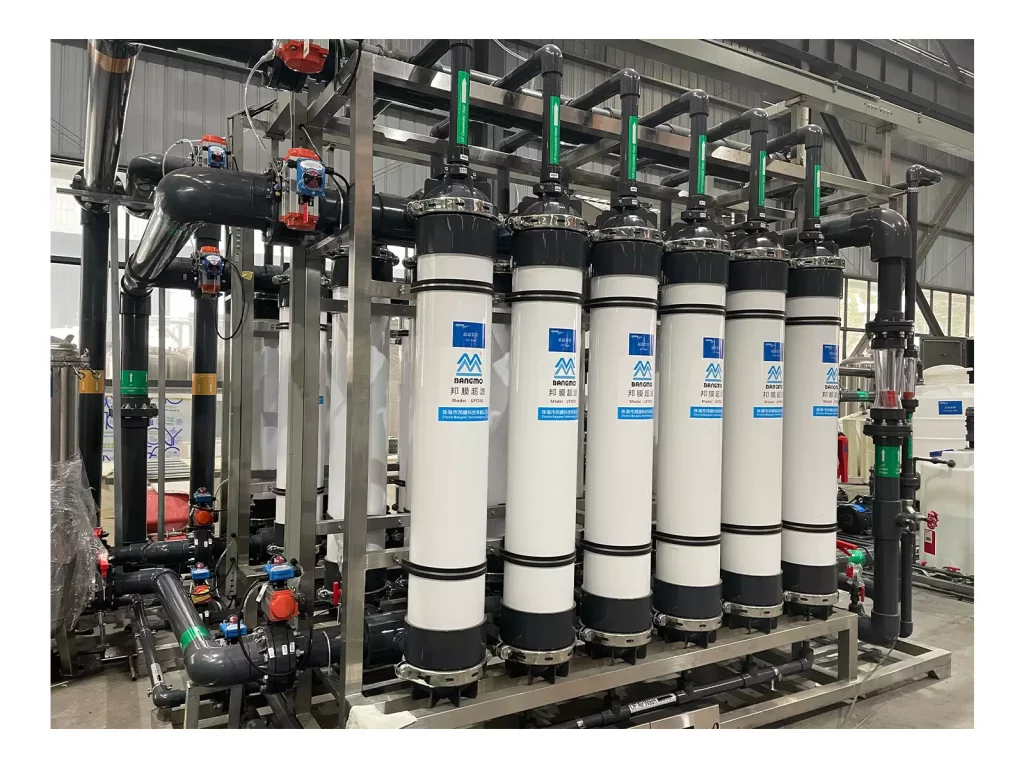

Ultra-Filtration Water Treatment Plant
Ultra-filtration (UF) system is a membrane separation process that uses screening as the separation principle and pressure as the driving force, with a filtration accuracy of 0.005-0.01 μ m. it can effectively remove particles, colloids, bacteria, heat sources, and high molecular organic substances from water. Its widely used in the separation, concentration, and purification of substances.
The ultra filtration system needs to equip with backwash devices, backwash dosing device and Acid and Alkaline dosing device to ensure the normal maintenance and longer the service life of ultra filtration membrane.
Share to
Application
- Suitable for purify the surface water, underground water, tap water
- As pretreatment filters of reverse osmosis(RO)
- Waste water treatment, gray water recycling etc.
Technical Specification
| Product | Ultra Filtration Water Purification System |
| Capacity | 0.25TPH to 100TPH |
| Working Temperature | 5-45℃ |
| Operation pressure | 0.11~0.6Mpa |
| PH range | 1-13 |
| Micro-organism and bacteria remove rate | 99.99% |
| Suspended remove rate | 99% |
Characteristic
01
Use a low pressure pump to complete the separation, consumes small energy
02
The separation process can be carried out at room temperature, which can be suitable for some thermal substances
03
Equipment and process process are simple, easy to operate, manage and maintain
04
The capacity of the unit volume is the largest, the highest efficiency, and the area is small
