5000 LPH Industrial Single-Stage Reverse Osmosis System for China Printing Technology Co., Ltd
This 5000 LPH industrial single-stage reverse osmosis system is designed to produce high-purity process water for printing operations. With “pre-treatment + single-stage RO + CIP cleaning” as its core process, the system effectively removes hardness, suspended solids, colloids, heavy metals, organic contaminants, and other impurities from the raw water. It meets water quality requirements for key printing procedures such as dampening solution preparation, ink dilution, and roller cleaning, ensuring printing accuracy and stable product quality.

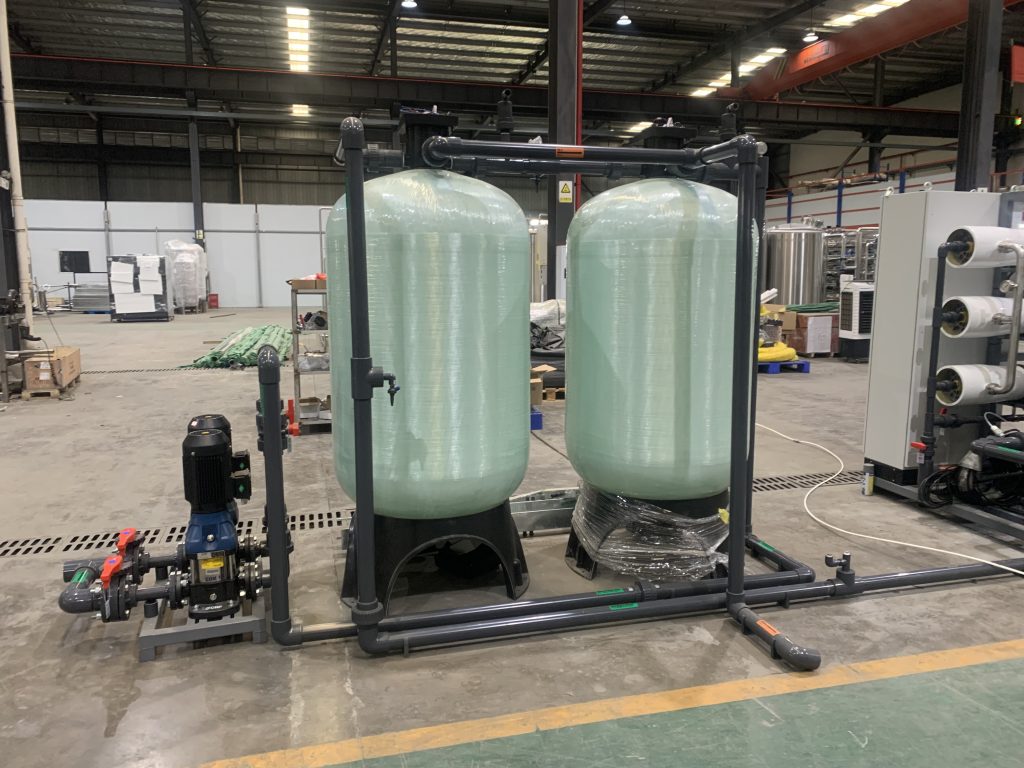

Pre-treatment Unit:
The system is equipped with a multi-media filter to remove suspended solids and colloids from the raw water, and an activated carbon filter to efficiently adsorb organic matter and pigments. By dosing antiscalant, the system reduces water hardness and improves the feedwater quality for downstream units. This ensures stable RO system performance and extends the service life of the RO membranes.

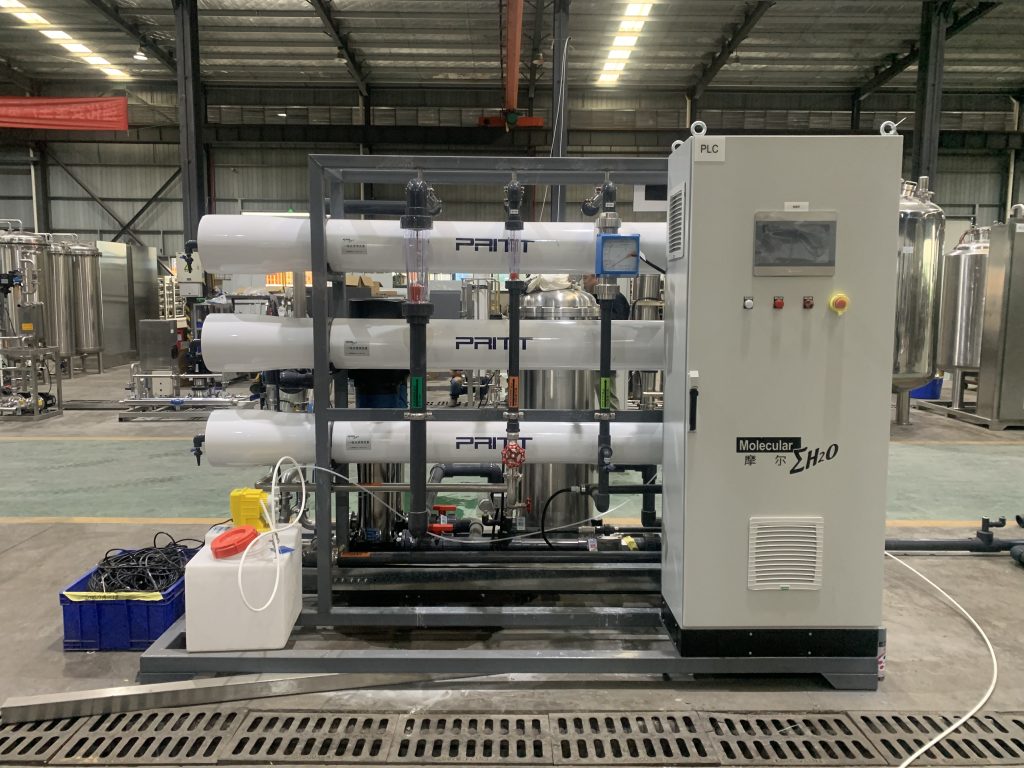

Core Treatment Module:
A corrosion-resistant stainless-steel frame supports the reverse osmosis (RO) system, enabling deep removal of ions and impurities from the raw water and ensuring stable industrial pure-water quality.
Intelligent Control Cabinet:
The explosion-proof stainless-steel control cabinet is equipped with a PLC and HMI touchscreen, providing real-time online monitoring of product-water quality and operating status. It supports fault alarms, cloud data storage, and remote one-touch start/stop operation.
Key Technical Advantages:
- Customized process design: The antiscalant dosing system is engineered based on the customer’s feedwater conditions, effectively lowering hardness while avoiding the high cost of traditional softening filters.
- Online monitoring: Real-time monitoring of system operating conditions helps reduce labor time and improve worker efficiency.
