1000LPH Dialysis Pure Water Machine for Algerian Hospitals

This 1000LPH pure water machine is a core medical water treatment equipment designed to provide high-purity water for hemodialysis/renal dialysis. Adopting the core process of “pretreatment + two-stage reverse osmosis”, it strictly complies with YY 0572-2015 and AAMI water standards. It efficiently removes ions, microorganisms, endotoxins, organic matter and other pollutants from raw water, with the produced water conductivity ≤5μS/cm and endotoxin ≤0.025EU/mL, meeting hemodialysis water requirements and building a “safety cornerstone” for hemodialysis treatment and the medical field.

Core Process Overview

Pretreatment Unit

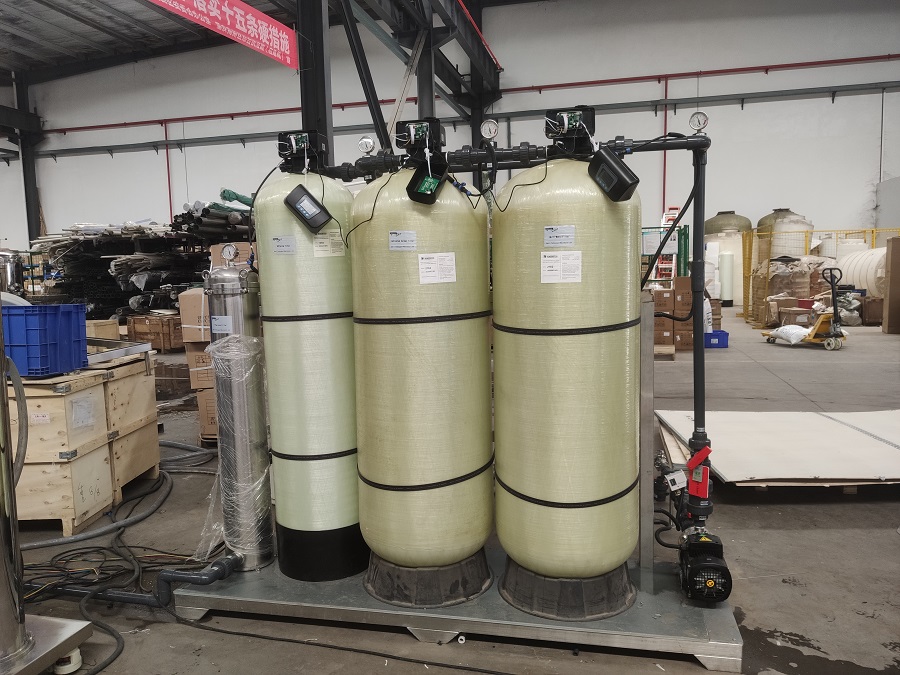

The dialysis pure water machine is equipped with a multimedia filter to remove suspended solids, an activated carbon filter to eliminate chlorine, off-colors and odors, and a softening filter to reduce water hardness. These processes improve the inlet water quality for reverse osmosis and extend the service life of RO membranes.

Core Treatment Module

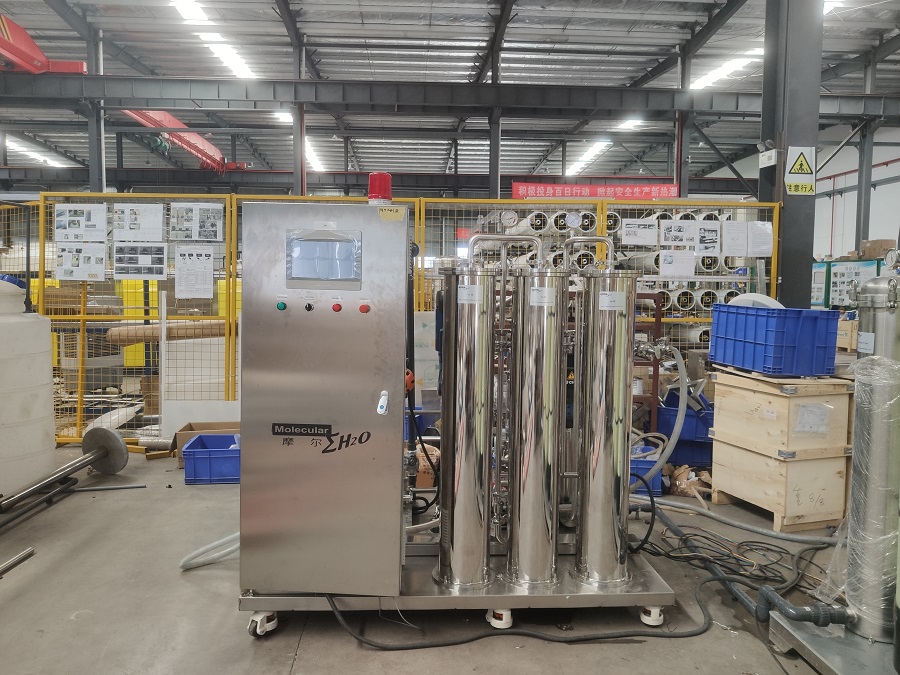

The equipment adopts a stainless steel frame integrated with two-stage reverse osmosis (RO) for deep desalination and pure water production. It not only meets medical-grade hygiene requirements, resists corrosion in water treatment environments, but also provides stable equipment support, adapting to the strict standards of medical/dialysis scenarios.

Intelligent Control Cabinet

Equipped with a stainless steel cabinet with PLC + HMI touch screen, the device can real-time monitor the water treatment process and key parameters such as conductivity. The status alarm function enables one-click start/stop promptly, ensuring the safety of dialysis pure water production.

Core Technical Advantages

  1. Graded Purification & Qualified Water Quality: Pretreatment intercepts large-particle impurities; two-stage reverse osmosis achieves gradual deep desalination and pyrogen removal. The produced water meets YY 0572-2015 (China) and AAMI/ASAIO (US) standards.
  2. Intelligent Control & Real-time Monitoring: The touch screen PLC supports one-click operation + remote monitoring. The produced water conductivity is stable at 3-5μS/cm (25℃), with endotoxin ≤0.025EU/mL and microorganisms ≤5CFU/mL, avoiding water quality fluctuations and ensuring hemodialysis safety.
