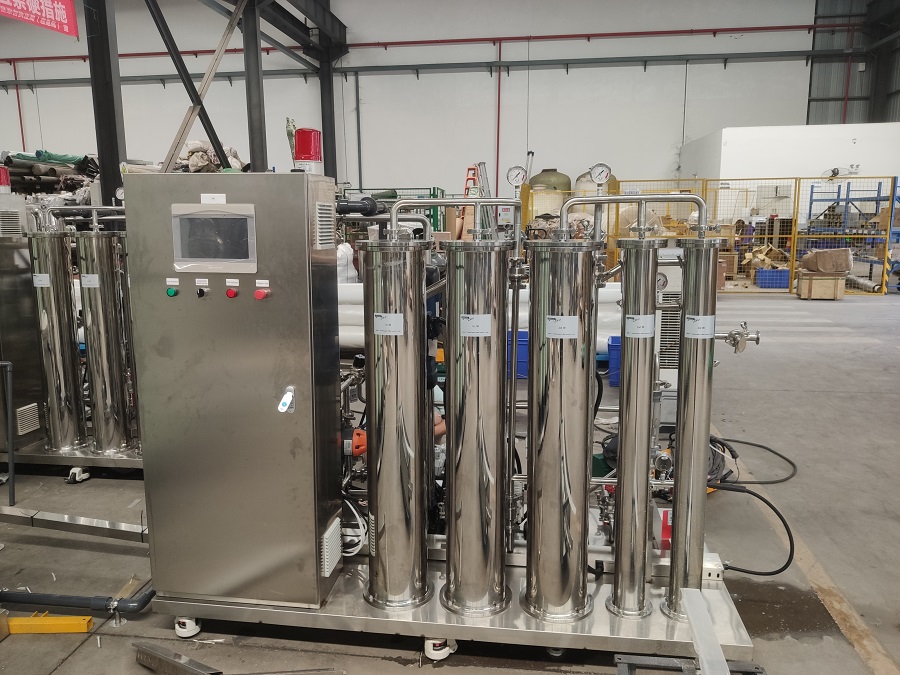

1500L Double Reverse Osmosis Hemodialysis Water Treatment System for Morocco Export

Custom-developed for the core water supply needs of hemodialysis treatment in Moroccan medical institutions, this 1500L double reverse osmosis (RO) hemodialysis water treatment system adopts a dual-stage RO core process combined with a precision pre-treatment system to conduct multi-stage filtration, desalination and impurity removal of raw water. It strictly complies with the United States Pharmacopeia (USP), European Pharmacopeia (EP) and Moroccan National Health Standard (NM 08.0.300), providing high-purity, low-endotoxin dedicated water for hemodialysis treatment and comprehensively safeguarding the safety of hemodialysis therapy and patients’ health.

Core Technologies

All water-contacting components of the system are made of medical-grade stainless steel, and the frame and auxiliary structures are constructed with 304 stainless steel, ensuring non-toxic material safety, corrosion resistance and easy cleaning. In terms of process, it features a combined configuration of three-stage pre-treatment (quartz sand filtration + activated carbon adsorption + softening filtration) and dual-stage reverse osmosis. First, the three-stage pre-treatment efficiently removes macromolecular impurities such as sediment, residual chlorine and organic matter from raw water; the first-stage RO then eliminates over 99% of dissolved salts and colloidal pollutants, and the second-stage RO deeply retains residual impurities. The final product water maintains a stable conductivity of ≤0.05μS/cm and an endotoxin content of ≤0.03EU/ml, fully meeting the extreme purity and safety requirements for hemodialysis water.

The system adopts product water pipe network circulation technology with a 24/7 continuous circulation and delivery design, keeping the product water flowing constantly in the pipe network to fundamentally eliminate stagnant water residue and ensure fresh, up-to-standard water quality at every water outlet. It is also equipped with a peracetic acid chemical disinfection process that regularly disinfects the circulating pipe network and water-contacting components, completely killing residual microorganisms, bacterial spores and pyrogens. Additionally, the system is fitted with 24-hour uninterrupted monitoring sensors that conduct real-time monitoring of product water purity, pressure, flow rate and endotoxin content. In case of abnormal data, an alarm is triggered immediately with automatic shutdown, providing all-round protection for hemodialysis water safety.

Real-Time Monitoring System

Equipped with real-time monitoring sensors, the system performs 24-hour uninterrupted monitoring of product water purity, pressure, flow rate and endotoxin content. Immediate alarm and automatic shutdown are activated upon abnormal data, eliminating potential water safety hazards in the process.

The equipment features an integrated modular design, integrating functional units such as raw water pre-treatment, dual-stage reverse osmosis, product water circulation pipe network and precise delivery. Its compact size is adapted to the layout of diagnosis and treatment spaces in small and medium-sized medical institutions in Morocco. The pipeline connection adopts sanitary quick-install joints, and the overall pipe network layout is optimized with no dead corners or blind ends, which not only meets the operational requirements of product water pipe network circulation technology but also complies with GMP and medical equipment hygiene management specifications, facilitating daily maintenance and disinfection operations.

It integrates functional units including raw water pre-treatment, dual RO purification, sterilization and storage, and precise delivery. The modular structure is space-efficient, perfectly suited for the venue layout of small and medium-sized medical institutions in Morocco. Sanitary quick-connect joints are used for pipeline connection, enabling convenient disassembly and assembly with excellent sealing performance. Compliant with GMP and medical equipment hygiene management norms, the system is easy for daily maintenance and disinfection.

Key Advantages

High Purity & Compliance

The combined process of three-stage pre-treatment and dual-stage RO, paired with peracetic acid chemical disinfection, achieves a removal rate of ≥99.99% for pyrogens, microorganisms and ions. The product water fully complies with USP, EP and Moroccan NM 08.0.300 hemodialysis water standards, and can be directly used in various hemodialysis scenarios such as hemodialysis and hemofiltration.

High Efficiency, Energy Saving & Cost Reduction

Adopting heat energy recovery and wastewater reuse technology, the system has a low power consumption of only 0.9kWh per ton of water, saving more than 35% energy compared with traditional hemodialysis water equipment. Made of 304 and 316L stainless steel, it has a long service life of 10-12 years with a water recovery rate of ≥75%.

Intelligent & Stable Operation & Maintenance

Equipped with a PLC control system with a bilingual interface, it supports one-click start/stop, real-time parameter traceability and remote fault diagnosis, with data synced to the local management platform of medical institutions, fully adapting to the operating habits of local Moroccan O&M teams. Exclusive technical training and after-sales support are also provided to ensure the continuous and stable operation of the equipment.
