500L Pharmaceutical Purified Water Equipment for Export to Russia

This 500L pharmaceutical purified water equipment is a core device providing high-purity water that meets production standards for the pharmaceutical industry. With the core process of “pretreatment + double-stage reverse osmosis + thermal disinfection”, it efficiently removes ions, microorganisms, endotoxins, organic matter, colloids and other pollutants in the raw water, meeting the water demands of multiple links such as raw material preparation and formulation production in the pharmaceutical industry.

00L pharmaceutical purified water equipment for export to Russia-1
  • Pretreatment unit: A multi-media filter is successively configured to remove suspended solids, sand and other mechanical impurities in the raw water. An activated carbon filter efficiently adsorbs residual chlorine, organic matter and pigments. A softener removes calcium and magnesium ions to reduce water hardness. Multiple steps work together to improve the influent water quality of the subsequent treatment units, ensuring the stable operation of the core system.
  • Core processing module: It adopts a corrosion-resistant stainless steel frame and is equipped with a two-stage reverse osmosis (RO) + thermal disinfection system. The two-stage reverse osmosis achieves deep desalination, with a desalination rate of over 99.6%. The thermal disinfection system further removes microorganisms and bacteria to ensure stable and compliant water quality.
  • Intelligent control cabinet: Equipped with a PLC+HMI touch screen, this explosion-proof stainless steel control cabinet is compatible with the local voltage standards in Russia. It can monitor key parameters such as the water production process, conductivity, pressure, and flow rate in real time. It supports fault alarm, data storage, and one-click start and stop operations.

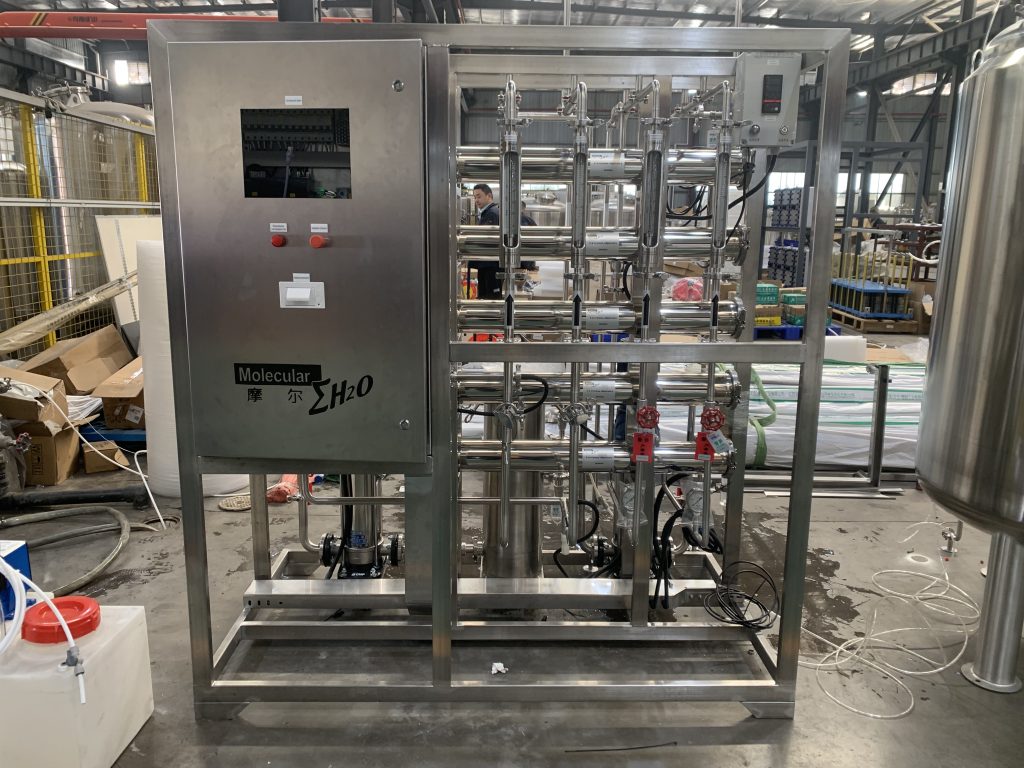

500L pharmaceutical purified water equipment for export to Russia-2

Core technological advantages

The water quality of the produced water complies with the Russian pharmaceutical water standards and the Chinese GMP regulations, and is suitable for the water usage requirements of various scenarios in the pharmaceutical industry: the conductivity of the produced water is stable at 1-2μS/cm (at 25℃), endotoxin ≤0.025EU/mL, microorganisms ≤10CFU/mL, and the purity is superior to the industry’s basic standards.

The main body of the equipment is made of 304 stainless steel, which is corrosion-resistant and easy to clean, meeting the hygiene requirements of the pharmaceutical industry. It is also suitable for the severe cold climate in Russia and can operate stably in an environment ranging from -20℃ to 45℃.

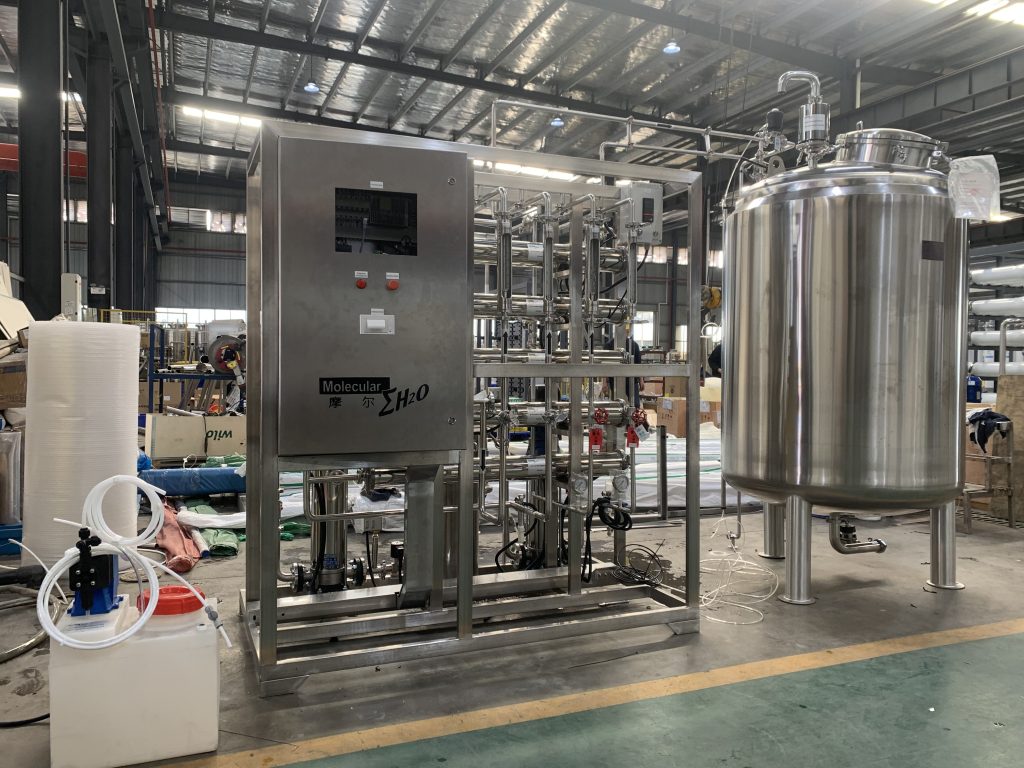

500L pharmaceutical purified water equipment for export to Russia-3
