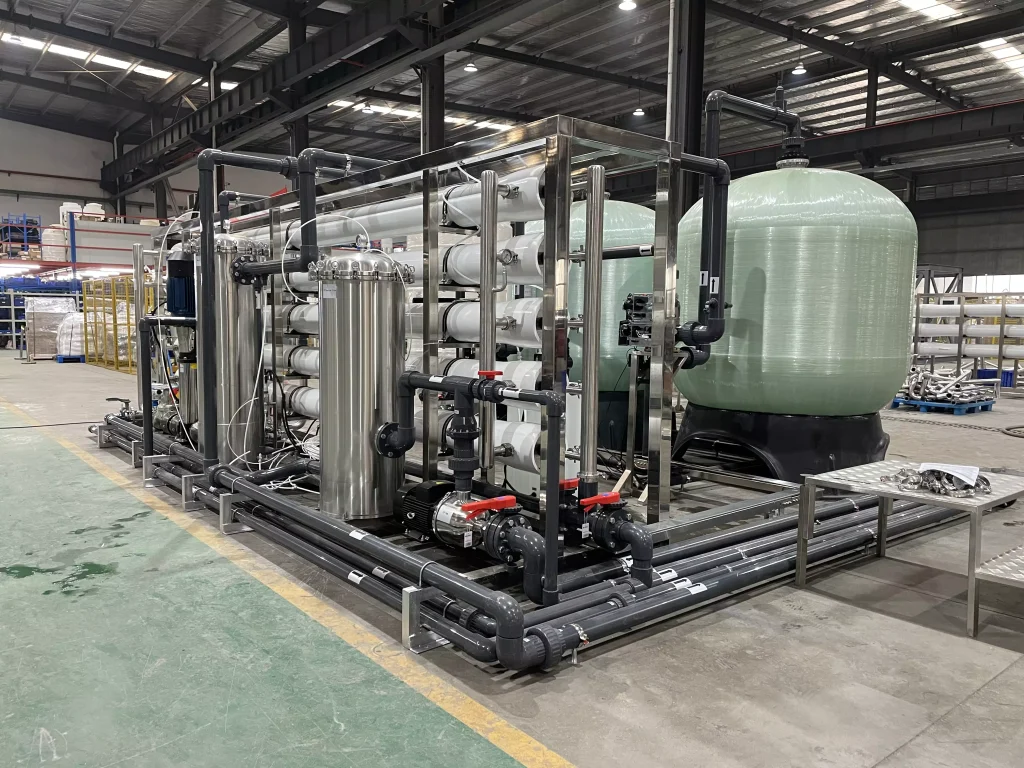

Industrial 25TPH Reverse Osmosis Pure Water Treatment System
This system is a 25T/H pure water system designed based on client raw water conditions, water quality requirements, installation room size conditions, and relevant national standard, using the most advantaged reverse osmosis technology.
Raw water condition
- Raw water：Local tap water Conductivity ≤500us/cm@25℃
- Temperature requirement：5～40℃
- Inlet pressure：0.1-0.4MPa
- Inlet flow：：≥50T/H
Technical specification
| Control system | PLC + HMI auto and manual |
| Automatic protection | hydropenia, power off, overload, overflowing |
| Ro membrane | DOW membrane USA original |
| Material | SS304 + FRP+UPVC |
| Production rate | 25000L/H |
| Feeding water | Underground water |
| Certification | ISO 9001 |
| Recovery rate | 70% |
| Desalination rate | 98-99% |
Working flow

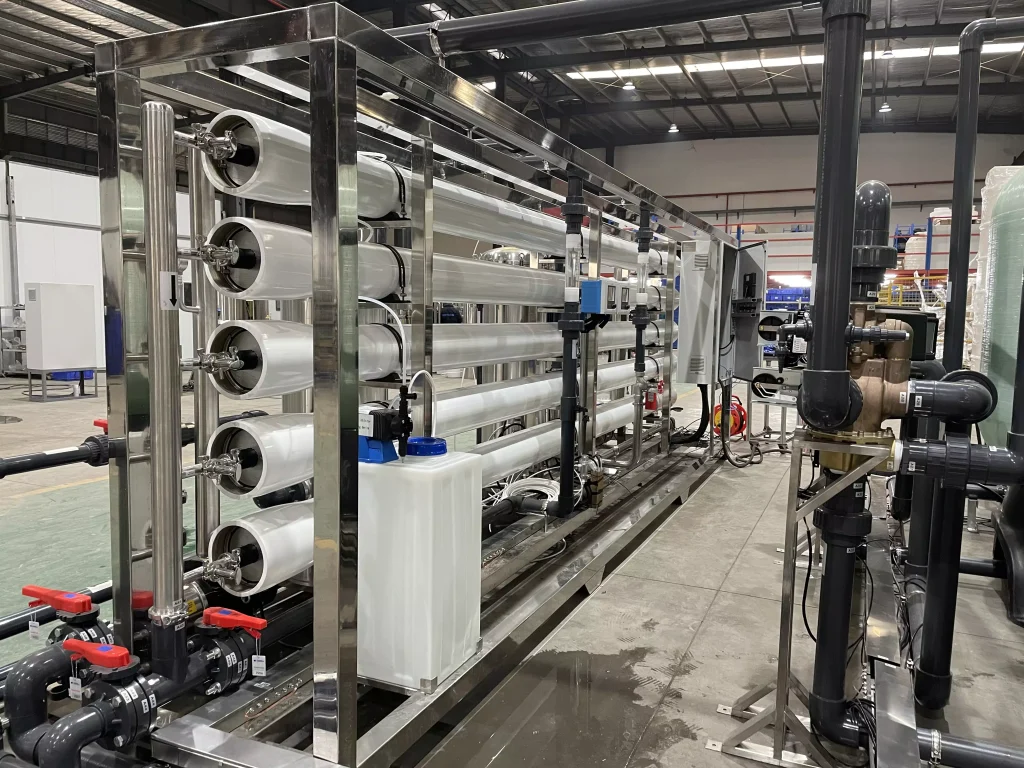

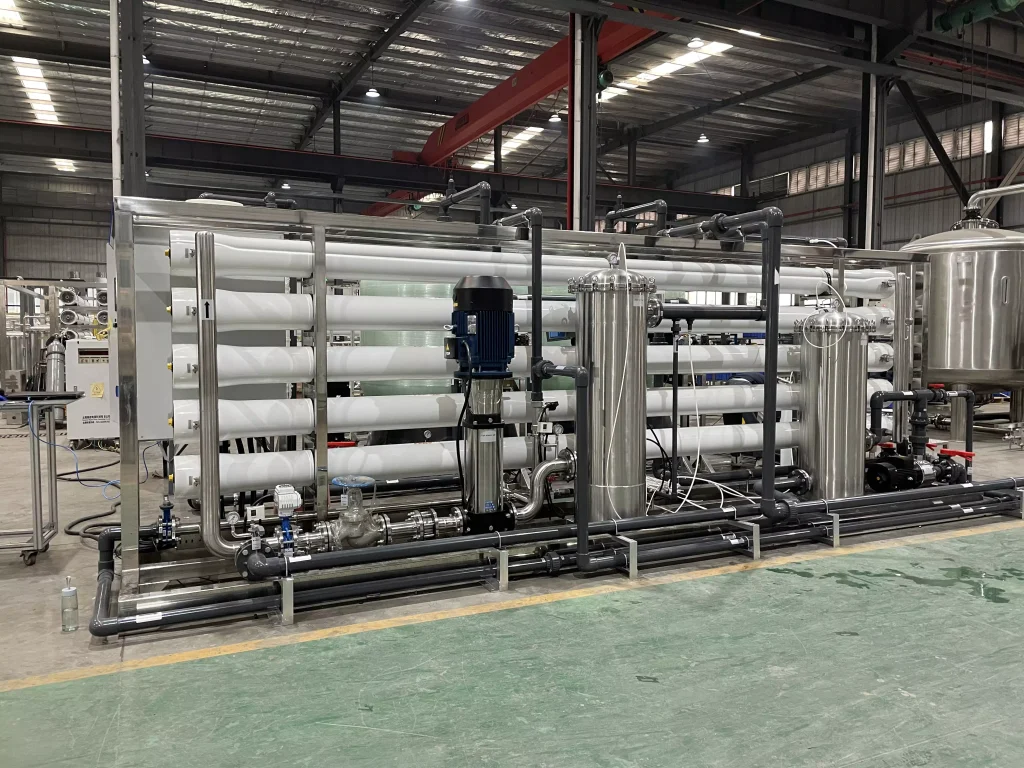

Raw water —Mutimedia filter —Activated carbon filter —Antiscalant dosing device —5μm security filter —high pressure pump —Reverse Osmosis system —Pure water tank(By client)
Features of reverse osmosis RO water system

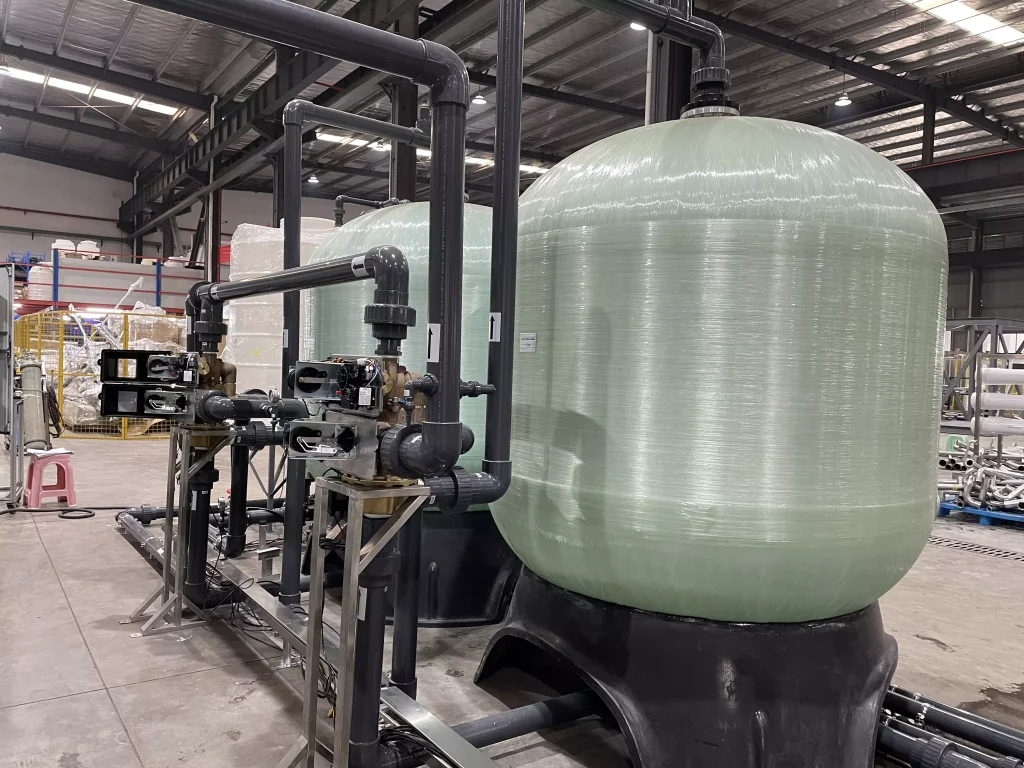

Two stage of pretreatment filters, include multimedia filter, activated carbon filter to improve the inlet water quality.
The pretreatment filters are automatic controlled by automatic control valve.
Economic materials and configuration to save cost.
Modularization, full automatic control.
Running and maintenance cost is low .
