Industrial 15TPH 18.25MΩ Ultrapure Water Treatment System RO EDI Mixbed Filtration

This water treatment system was design to make high purity water for new materials industry. It adopts pretreatment filters + double stage RO +EDI+ ion exchange column to get ultra pure water. The whole system is PLC+HMI touch screen automatic control, simple operation and save labor cost.

Technical specification

ModelMOLUP-15T
Capacity15000L/H (15T/H)
Source waterUnder ground water
ControlPLC+HMI automatic control
Produce water quality18.25MΩ at 25℃
TechnologyPretreament filters+RO+EDI+Mixbed
ApplicationNew materials industry
Power supply380V, 50/60Hz

Features of the ultrapure water system

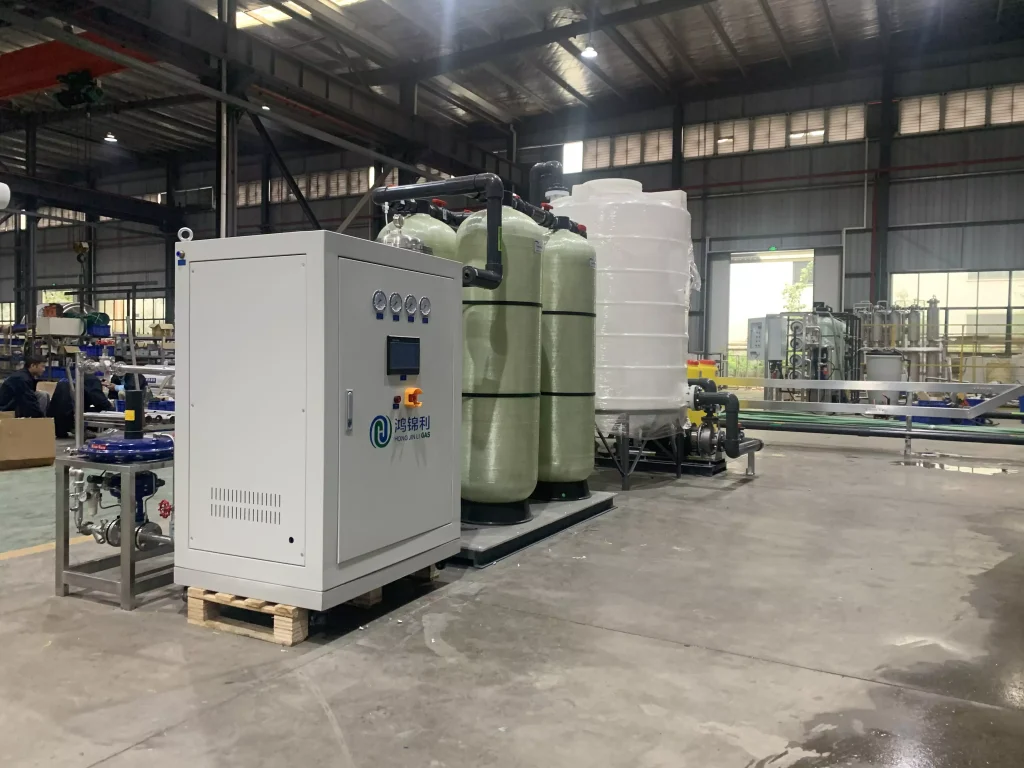

  1. Full automatic control, with PLC+ touch screen display.
  2. Economic material choose, save cost on buying machine. pretreatment filter use FRP vessel, RO part use FRP membrane housing, and the pipe in low pressure part use UPVC, high pressure part use SS304.
    3. The pretreatment mutimedia fitler and carbon filter are automatic backwashing and rinse
  3. Movable CIP system to clean the RO membrane. it can effectively longer RO membrane lifespan
  4. The RO reject water could be partial return before the precision filter, to increase the recovery rate. The total recovery can up to 75%
  5. Produce water conductivity online display on the control panel, and with a alarm for problems.

Functions for main filter parts

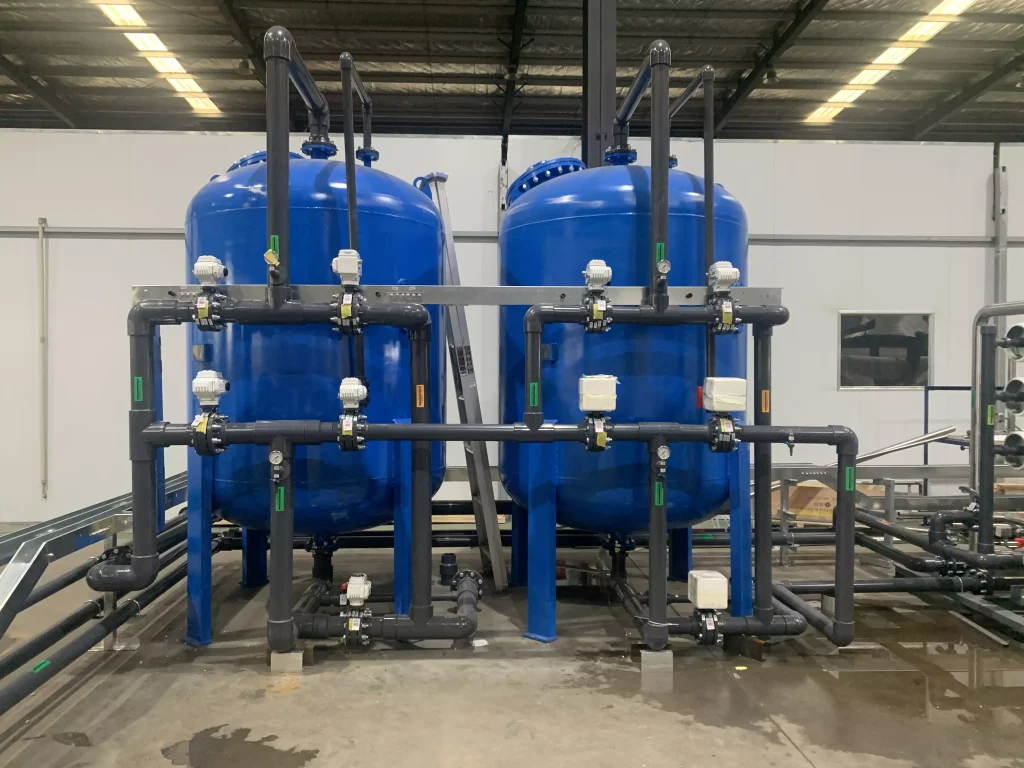

Mutimedia filter : It is mainly used to remove particles, colloids, suspended matter, turbidity, etc., so that the turbidity of the effluent is <1NTU, SDI≤5.
Activated carbon filter: Activated carbon has a strong adsorption and filtration performance, and has a strong adsorption effect on residual chlorine, color, odor, organic matter, microorganisms, etc.
Precision filter: to prevent suspended solids damage the high pressure pump shell and ro membrane

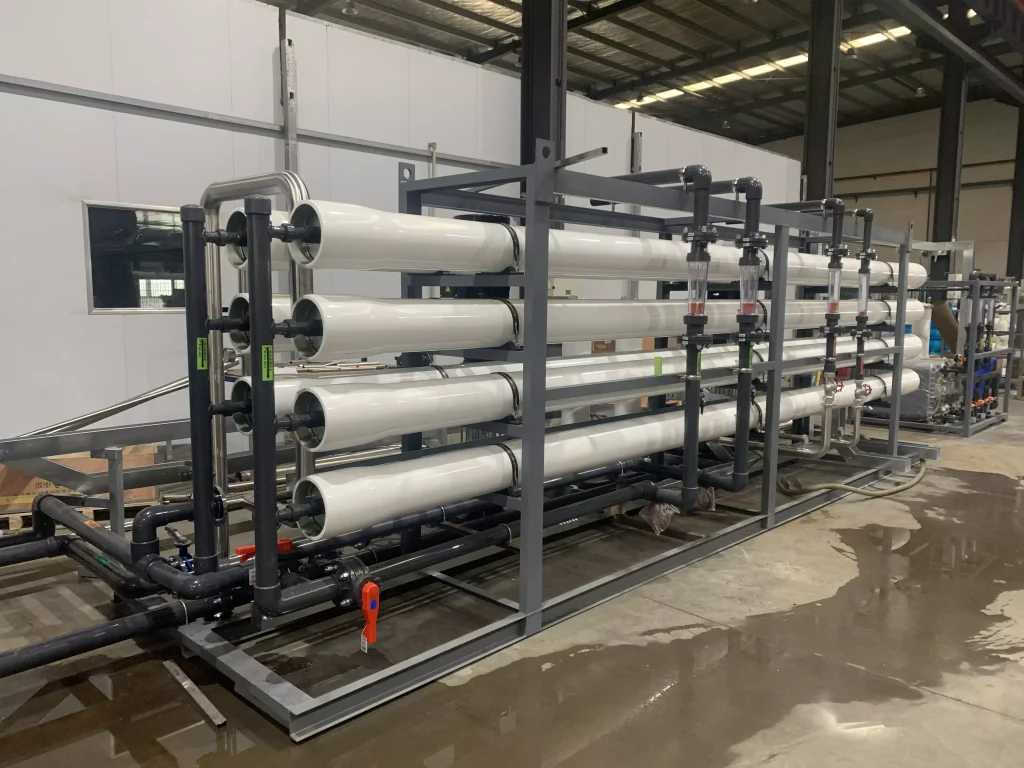

Reverse Osmosis membrane: The reverse osmosis membrane is made of internationally renowned brands and made of polyamide composite membrane with a desalting rate of ≥99%.

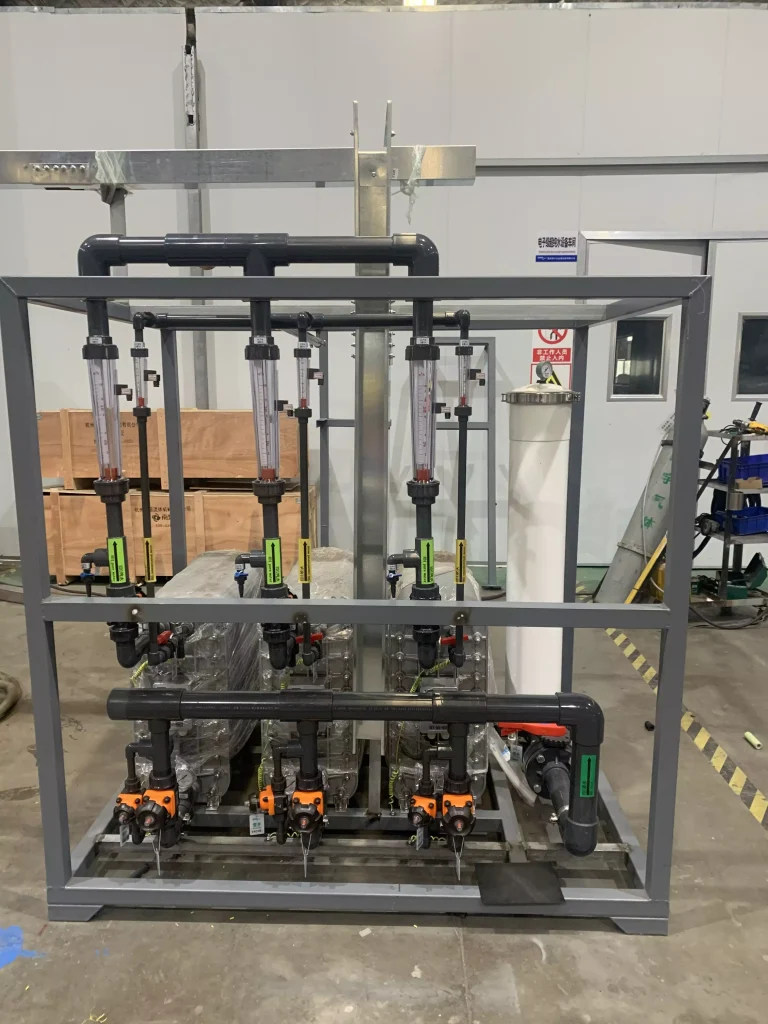

EDI module: Deep filtration to make pure water resistivity higher than 15MΩ.

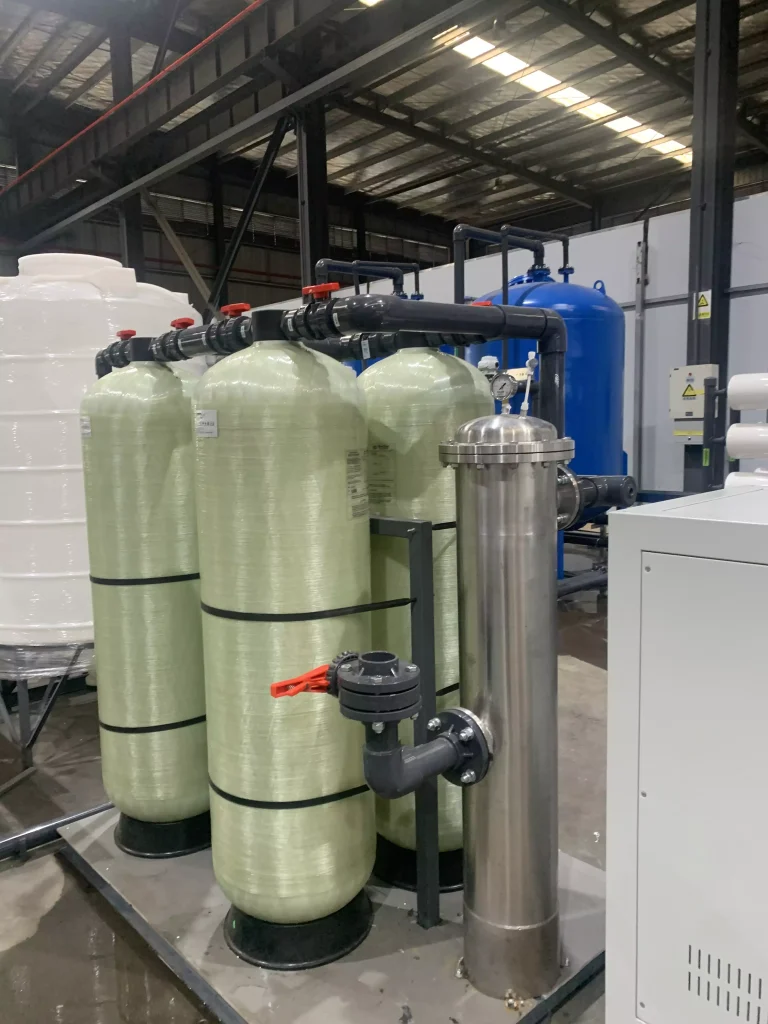

Mix bed: Polishing cation and anion resins to make the produce water reach 18.25MΩ.
